How to Supervene upon or Repair the Rear Door Handle, Door Latch, or Door Lock Actuator on the Toyota Camry

• Annotate

Hardlymoving repairs and flips Toyota Camrys and has written extensively about these dependable cars.

This exercise information technology yourself (DIY) commodity provides details on fixing or replacing the rear outside door handle, door latch, or door lock actuator for the 4-door (1997-2001) Toyota Camry. The repair principles here will also piece of work on other Toyota vehicles.

Why encompass three repair items in one article?

Sometimes, it'south impossible to access and repair a damaged component without removing another component which may require repair besides. Specifically, you can't access the rear exterior door handle or door lock actuator without removing the door latch. The door latch blocks admission to the door handle's rear mounting commodities, and since the door lock actuator is mounted and braced to the door latch, you can't remove the actuator without removing the latch.

Typical Problems With the Door Components

Door Handle

The door handle is made of plastic, which ages. Then peculiarly in frigid conditions, the handle can unexpectedly pause off. Attempting to fuse the handle at the point of breakage with epoxy mucilage will fix the problem temporarily. But even with epoxy, the handle will eventually pause free. Yous can club replacement door handles, both painted and unpainted, from diverse vendors on the Cyberspace for modest prices. My preference is to match the machine's paint code with a pre-painted door handle.

Door Latch

If y'all tin't open the door by pulling on either the within or the exterior door handle, you will have to replace the latch. Unfortunately, the latch assembly is a very expensive replacement production ($200), and Toyota does non sell replacement components for the assembly. Obtaining a used replacement from an auto salvage yard is worth considering, but door-latch assemblies are ordinarily missing from junk cars due to the high demand for them.

Door Lock Actuator

If one or more door locks will non lock electronically when yous are using either the principal door lock switch, ignition key, or remote door lock cardinal pull a fast one on, the door lock actuator motor has become weak or failed. The actuator motor tin can be replaced, but is not available from dealers as a replacement function; they just accept the complete door lock actuator assembly, for approximately $150. However, vendors on Amazon and eBay sell replacement motors for OEM (Original Equipment Manufacturer) providers of Toyota. In improver, tertiary-party parts vendors on the Internet provide complete actuators for considerably less than Toyota.

The Toyota door lock actuator assembly encapsulates the motor and the gears it drivers in two black plastic covers. These covers are lightly glued together, and (as the last department of this article shows you) can be hands separated by hitting the contact seams with a wide-tip screwdriver and hammer. When the seam partially opens, the rest of the encompass tin can be pried off which will intermission the glue'due south adhesion.

Once y'all become the embrace off, y'all can replace the motor with a new 1. The Camry-type replacement motor must have a brass collar attached to the end of the motor's rod. A worm gear then slides over the collar. The worm gear, in turn, rotates the gears inside the actuator assembly.

What the Door Handle Looks Like

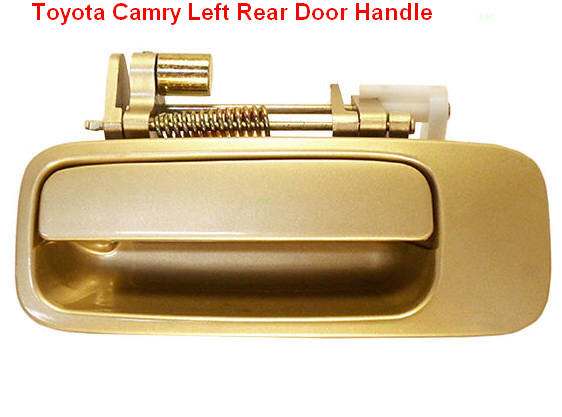

Toyota Camry Left Rear Door Handle

Toyota Camry Left Rear Door Handle - Back Side

What the Latch and Actuator Look Like

Toyota Camry Left Rear Door Latch with Door Lock Actuator

New Toyota Camry Left Rear Door Lock Actuator

Required Repair Tools

No specialized repair tools are required to supercede these parts. All you should need is

• a screwdriver set
• a metric socket wrench gear up
• a Torx three/8" socket set up

Estimated Repair Fourth dimension

With no glitches, approximately 1.5 hours.

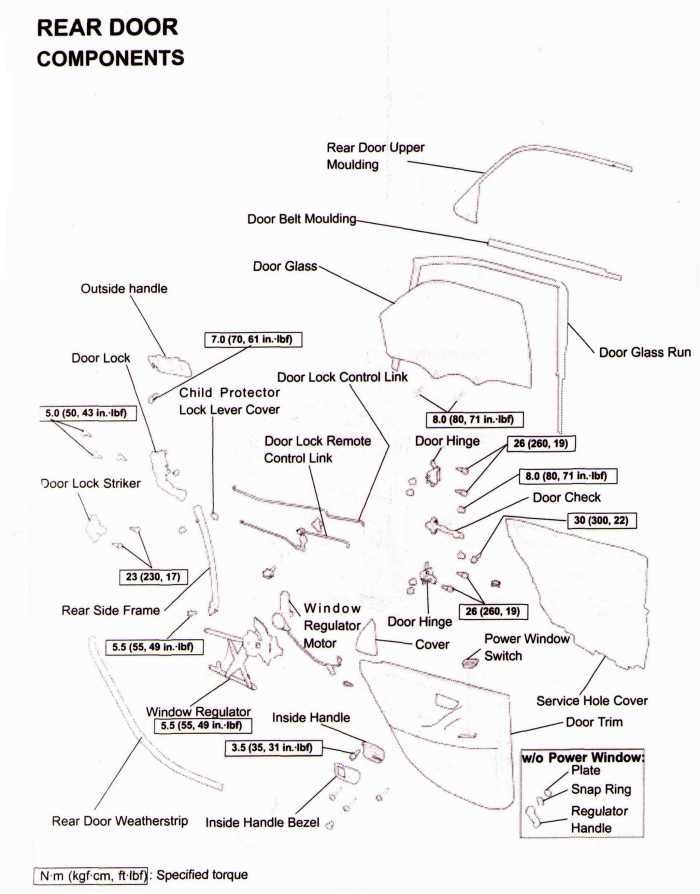

Diagram of Door Components

Toyota Camry Rear Door Components

Whorl to Go on

Read More from AxleAddict

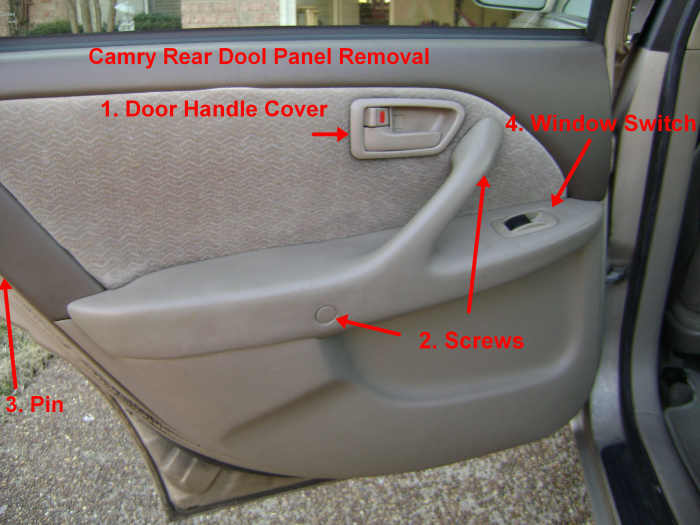

1. Remove the Interior Door Panel

The interior door panel must be removed to proceeds access to the failed components. The items that need to be removed are outlined in cerise and in numerical sequence:

Toyota Camry Rear Door Panel

2. Remove the Interior Door Handle Comprehend

• Pry open the interior door handle screw embrace
• Remove the interior door handle cover screw
• Pry off the interior door handle embrace from the door handle and lock pivot pins.
• Pull off the interior door handle cover.

Toyota Camry Rear Within Door Bezel

three. Remove the Door Armrest Plugs and Screws

• Pry out the rearmost Armrest Plug.
• With a long Phillips-head screwdriver, remove the spiral.
• Pry out the front upper Armrest Plug.
• With a long Phillips-caput screwdriver, remove the screw.

Toyota Camry Rear Door Panel Spiral Plug

four. Remove and Unplug the Window Switch

• Using either a plastic mini pry bar or a screwdriver, pry out the front of the Window Switch.
• Pull the switch forward and upward.
• Disconnect the electric fitting on the switch.

Toyota Camry Rear Door Panel Power Window Switch Removal

Toyota Camry Rear Door Panel Power Window Switch Plug

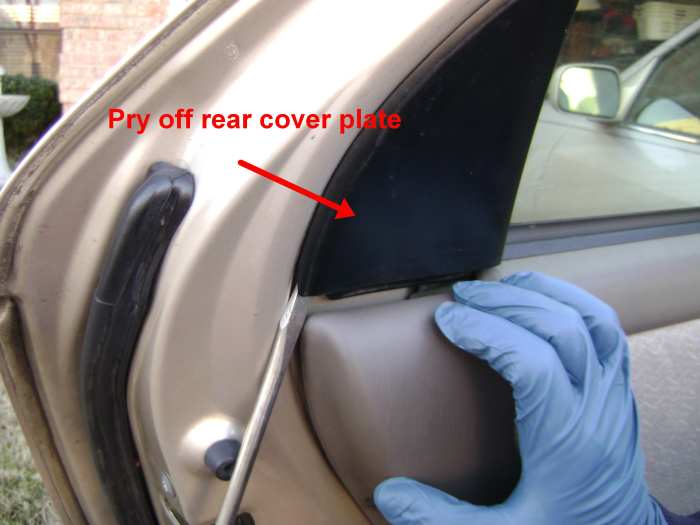

5. Pry off the Rear Door Black Plastic Embrace Plate

• Position either a mini plastic pry bar or screwdriver under the embrace plate and gently pry off the cover plate. The plate is fitted to the door with plastic push pins. If y'all pull on the plate as well aggressively, the pins might break.

Toyota Camry Rear Door Embrace

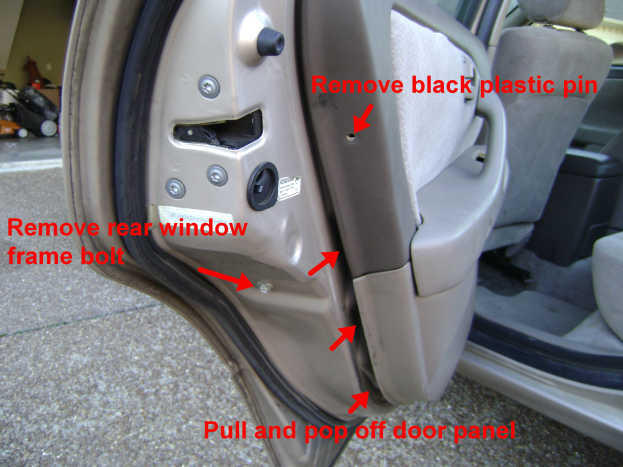

6. Detach the Interior Door Panel and Remove the Vapor Barrier

• Remove the rear window frame (guide) rails bolt.
• Remove the plastic button pin from the rear of the door panel.
• Using either a plastic pry bar or a wide-tip screwdriver wrapped in tape (to protect the pigment), nudge the bar tip between the panel and the door.
• With some gentle prying activity, the plastic fastener pins recessed in the door panel will popular off the door.
• Work effectually the door panel, pulling and separating the console from the door.
• Pull the door panel upwards and away from the door.
• Remove the white panel pin bracket from the door.
• From the rear portion of the door, peel back halfway the clear plastic vapor bulwark.

Toyota Camry Rear Door Console Separation

seven. Detach the Door Latch and Lock Control Rods

• Using a sparse-tipped screwdriver, hold the control rod with the right hand while applying upward pressure level on the rod connection fittings until the plastic clears the rod.
• Pull the rods out of the plastic connection fittings.

Toyota Camry Rear Door Lock and Handle Control Rod Detachment

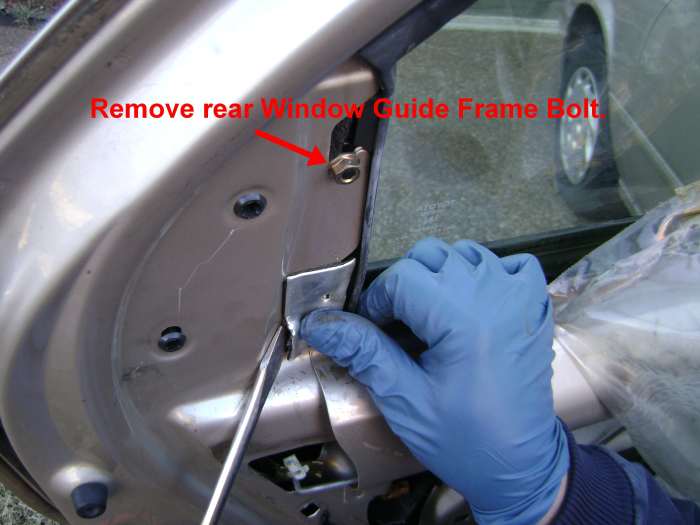

8. Remove the Upper Window Guide Runway Bolt

• You need to remove this bolt to allow the guide track to move when y'all pull out the door latch.

Toyota Camry Rear Door Rear Glass Guide Frame Upper Nut Removal

nine. Remove the Rear Door Latch Screws

• Employ a Torx Socket to remove the Door Latch Screws.

Toyota Camry Rear Door Latch / Lock Removal

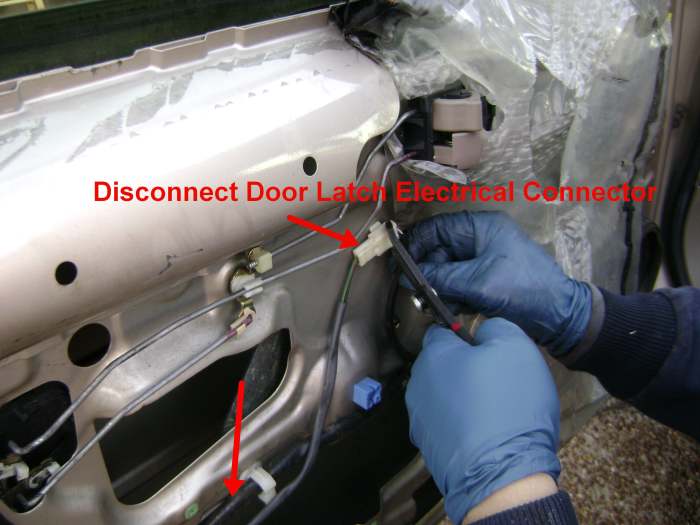

10. Remove the 2 Electrical Fittings Leading to the Door Latch

As shown beneath, disconnect and remove the two electrical fittings leading to the door latch.

Toyota Camry Rear Door Electric Fitting Disconnection

eleven. Pull Out the Door Latch (No Photos)

The rear window door frame is the simply object left that obstructs the removal of the door latch. Since the window guide rail is unbolted, you tin push the guide runway inwards while you pull the door latch out via the door access pigsty. While pushing in on the window guide, and watching your progress through ane of the admission holes, position the door latch so that it clears the guide.

12. If Replacing the Door Handle

• Either removing or unbolting the door latch will allow access to the rear door handle mounting Bolt. Pulling off the "Child Lock Switch" condom cover provides one path. You can access the front bolt through i of the door's access holes.
• The interior of the erstwhile door handle has a lip that holds the handle to the door. From the inside of the door, lift the lip over the door's mounting hole to remove the handle. If this is difficult, from the exterior of the door handle, utilise a taped broad flat-head screwdriver to lift the handle above the door's mounting hole.

Toyota Camry Rear Outside Door Handle Mounting Bolt Removal

13. If Replacing the Door Latch

• If you lot bought a new replacement door latch, it is probably missing the door lock actuator associates. The lock actuator from the old door latch must exist transferred to the new latch (no photos).
• Three screws secure the lock actuator to the door latch. In addition, there is a small control lever that must exist removed from the latch.

14. If Replacing the Door Lock Actuator Motor

• First, remove the door lock actuator assembly from the dock latch. At that place are 3 screws and a command lever that must exist removed (no photograph).
• The actuator assembly covers are glued together. Apply either a small chisel or a wide flat-caput screwdriver with a hammer to carve up the covers.
• Remove the exposed motor from the assembly.
• Sideslip the worm gear off of the motor shaft.
• Slip the worm gear onto the new motor.
• Re-install the new motor and mucilage together the assembly covers with whatsoever plastic glue.

Opening the Encompass on the Toyota Camry Door Lock Actuator Cover

This commodity is accurate and truthful to the all-time of the writer's knowledge. Content is for informational or amusement purposes only and does not substitute for personal counsel or professional advice in business, fiscal, legal, or technical matters.

Questions & Answers

Question: Tin repair of a door latch bezel due to cracks weaken the actuator?

Answer: Non that I'm aware of.
